Understanding Rapid Prototyping: Techniques and Methods

In the dynamic world of product development and manufacturing, rapid prototyping stands out as a transformative process that allows designers and engineers to create physical models of their designs quickly and cost-effectively. But what exactly is rapid prototyping, and how can it be achieved? In this blog post, we’ll delve into the essence of rapid prototyping and explore various techniques used to bring ideas to life.

What is Rapid Prototyping?

Rapid prototyping refers to a set of techniques used to quickly fabricate a scale model or functional prototype of a physical part or assembly using computer-aided design (CAD) data. The primary goal is to produce a tangible representation of a design concept swiftly, allowing for evaluation, testing, and refinement before moving into full-scale production.

The benefits of rapid prototyping are numerous: it accelerates the design process, reduces development costs, and enhances the ability to iterate on designs quickly. By providing a clear, physical model of a concept, rapid prototyping helps identify potential issues early, facilitating more informed decision-making and a more efficient path to market.

Different Ways to Achieve Rapid Prototyping

Rapid prototyping can be achieved through various techniques, each with its own advantages and suitable applications. Here’s a look at some of the most popular methods:

1. 3D Printing (Additive Manufacturing)

3D printing is one of the most widely recognized forms of rapid prototyping. It works by adding material layer by layer to build up a three-dimensional object based on a digital model. There are several types of 3D printing technologies, including:

• Fused Deposition Modeling (FDM): FDM uses thermoplastic materials like ABS or PLA, which are melted and extruded through a nozzle. It’s commonly used for creating durable and functional prototypes.

• Stereolithography (SLA): SLA employs a liquid resin that is cured by a UV laser. This method offers high precision and smooth surface finishes, making it ideal for detailed and intricate prototypes.

• Selective Laser Sintering (SLS): SLS uses a laser to sinter powdered material, such as nylon or metal, into solid structures. It’s suitable for creating complex geometries and functional parts.

2. CNC Machining

Computer Numerical Control (CNC) machining involves using computerized tools to cut, mill, and shape materials like metal, plastic, or wood. CNC machining is known for its precision and ability to produce parts with high tolerances. It’s particularly useful for creating prototypes that need to closely resemble final production parts or for functional testing.

3. Injection Molding

Injection molding is a process where molten material (usually plastic) is injected into a mold cavity to create a part. Although traditionally associated with large-scale manufacturing, injection molding can also be used for rapid prototyping, especially for producing multiple copies of a design quickly. This method is effective for creating prototypes that require high accuracy and durability.

4. Casting

Casting involves pouring a liquid material into a mold to create a part. Various casting techniques include:

• Silicone Casting: Silicone molds are used to produce parts from materials like resin or rubber. This technique is suitable for creating flexible prototypes and small batches.

• Vacuum Casting: This process uses a vacuum to remove air bubbles from the casting material, resulting in high-quality prototypes. It’s often used for producing parts with complex shapes and fine details.

5. Laminated Object Manufacturing (LOM)

LOM involves laminating and bonding layers of material (such as paper or plastic) to build up a three-dimensional object. Each layer is cut to shape using a laser or knife before being adhered to the previous layer. LOM is typically used for creating large, less detailed prototypes and is known for its cost-effectiveness.

6. Digital Light Processing (DLP)

DLP is a variation of stereolithography that uses a digital light projector to cure resin. This method offers rapid build times and high precision. DLP is particularly useful for producing highly detailed prototypes with smooth finishes.

7. Paper and Cardboard Prototyping (Arts & Crafts)

Paper and cardboard prototyping is a low-cost, flexible method for creating quick, rough models of a design. This technique involves cutting, folding, and assembling sheets of paper or cardboard to construct a physical model. It’s particularly useful in the early stages of design when conceptualizing form, layout, or ergonomics. It doesn't have to be limited to paper and cardboard, anything you have available can be use. Think back to school activities, building bridges out of popsicle sticks or an egg cushion out of spare foam and tissues.

• Advantages:

  • Cost-Effective: Paper and cardboard are inexpensive materials, making this method highly accessible for quick iterations.

  • Ease of Use: Tools required for paper and cardboard prototyping are minimal, usually including just a craft knife, glue, and a ruler.

  • Quick Iteration: It’s easy to make adjustments and modifications, allowing designers to experiment with different shapes and configurations rapidly.

• Applications:

  • Conceptual Models: Ideal for visualizing the basic form and dimensions of a product.

  • Ergonomics and User Experience: Useful for testing the fit and usability of designs, especially for consumer products or packaging.

  • Design Communication: Helps in communicating design ideas to stakeholders who may not be familiar with technical drawings.

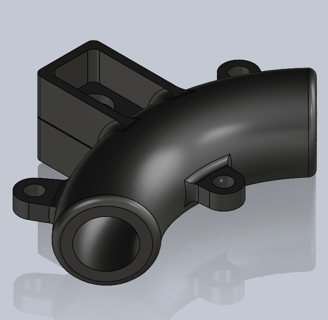

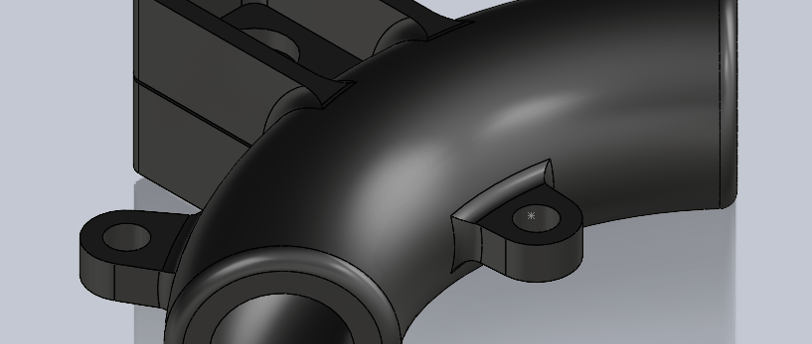

Why Not Just Use CAD

Computer Aided-Design (CAD) Modeling is a great first step. Oftentimes, it is a necessary first step for some rapid prototyping methods. However, CAD software doesn't answer all of the questions you may have. Perhaps you don't have the CAD model for the machinery or equipment you are using in conjunction with your design. You'll need a physical part to check for fitment to said machines and also to evaluate things like ergonomics, weight, and other physical properties. The most well-intentioned designs often get a dose of reality when turned into a physical part.

Choosing the Right Method

The choice of rapid prototyping technique depends on several factors, including:

• Material Requirements: Consider the properties of the material needed for your prototype, such as strength, flexibility, or thermal resistance.

• Detail and Accuracy: Some methods offer higher precision and better surface finishes than others. Choose based on the level of detail required for your prototype.

• Budget and Time Constraints: Different methods come with varying costs and production times. Evaluate what fits within your budget and timeline.

• Functionality: If your prototype needs to be functional for testing, select a method that supports this requirement.

Conclusion

Rapid prototyping is a vital tool in modern product development, enabling quick, cost-effective, and iterative design processes. With a range of techniques available, from 3D printing to CNC machining and casting, manufacturers and designers can select the most appropriate method for their needs. By understanding the different approaches and their advantages, you can leverage rapid prototyping to accelerate innovation, refine designs, and ultimately bring successful products to market faster.
